Manage Images

In the Manage Studies window, you can reorder the images in a study, delete images, and copy images to a different study.

To manage a study's images:

1.On the Studies page, click the check box next to the study you want.

2.Click the down arrow at the top of the check box column to open the Batch Actions menu.

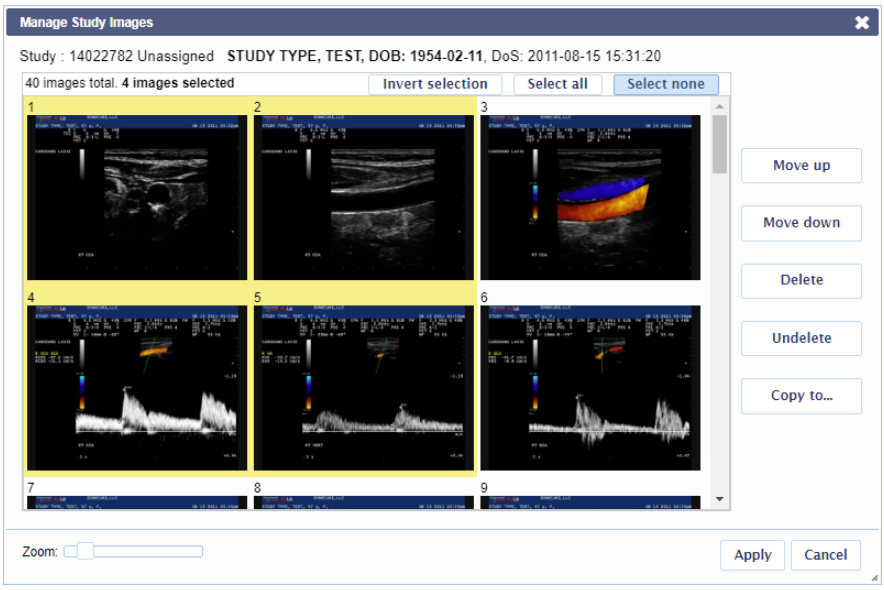

3.Select Manage Images. The Manage Study Images window opens.

4.Make the changes you want.

•To reorder the images:

•Click and drag images to a new location, or

•Select one or more images, and then use the Move up and Move down buttons to change their location.

•To delete images:

•Select each image you want to delete.

•Click the Delete button. The images will not be deleted until you click the Apply button.

•If you have chosen to delete images and then change your mind, you can select a deleted image and click the Undelete button as long as you have not clicked the Apply button yet.

•To copy images to another study:

•Select the images you want to copy.

•Click the Copy to... button.

•In the Copy Images to... window, choose whether to copy the selected image(s) to a new study or to an existing study, you can find the study by typing in the look-up field. You can enter the first few characters in the Study ID, Study Type, Patient Name, or Date of Service. Matching studies will appear in a drop-down list. Or you can simply tap on your space bar twice, and the first 100 studies on the Studies page will be displayed in the list.

5.When you click Apply, all your changes will be made. If you've chosen to delete images, they cannot be recovered after you click Apply.
