Studycast Direct
Studycast Direct
The Studycast Direct uploader is accessed from a separate login page and requires an access key. To get an access key, contact Studycast support.
Uploading Files

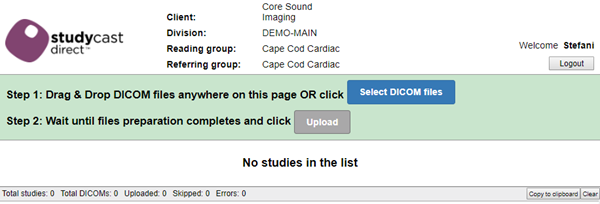

When you log into the Studycast Direct uploader, the screen displays instructions for uploading study files.
1.Click the Select DICOM files button.

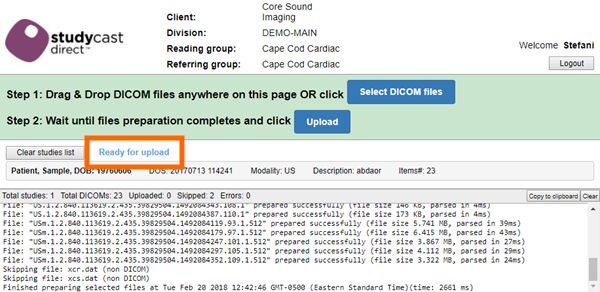

2.Locate the files you want to upload. You will see activity at the bottom of the window indicating your files are being imported. Once this process is complete, a Ready for upload message will appear.

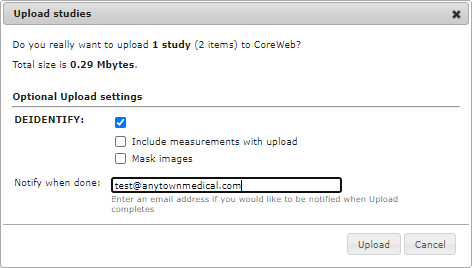

3.Click the Upload button. The Upload studies window opens.
•If you would like to receive an email that confirms the studies have uploaded, enter your email address.
•To remove Protected Health Information (PHI) from the study data, check the Deidentify box. Two additional options will appear:
•Include measurements with upload: keeps study measurements but removes PHI from SR data
•Mask images: places a mask over PHI in study images

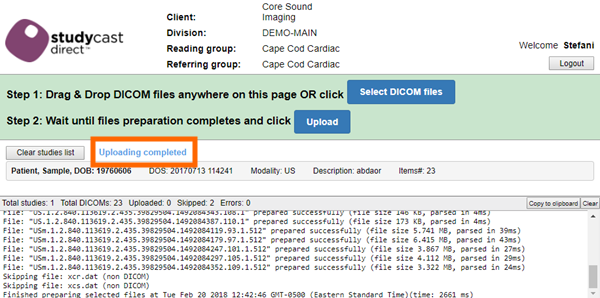

4.Click the Upload button. A status bar will show the progress of the upload. A message will appear when the upload is complete.
