Studycast Viewer

Studycast Viewer

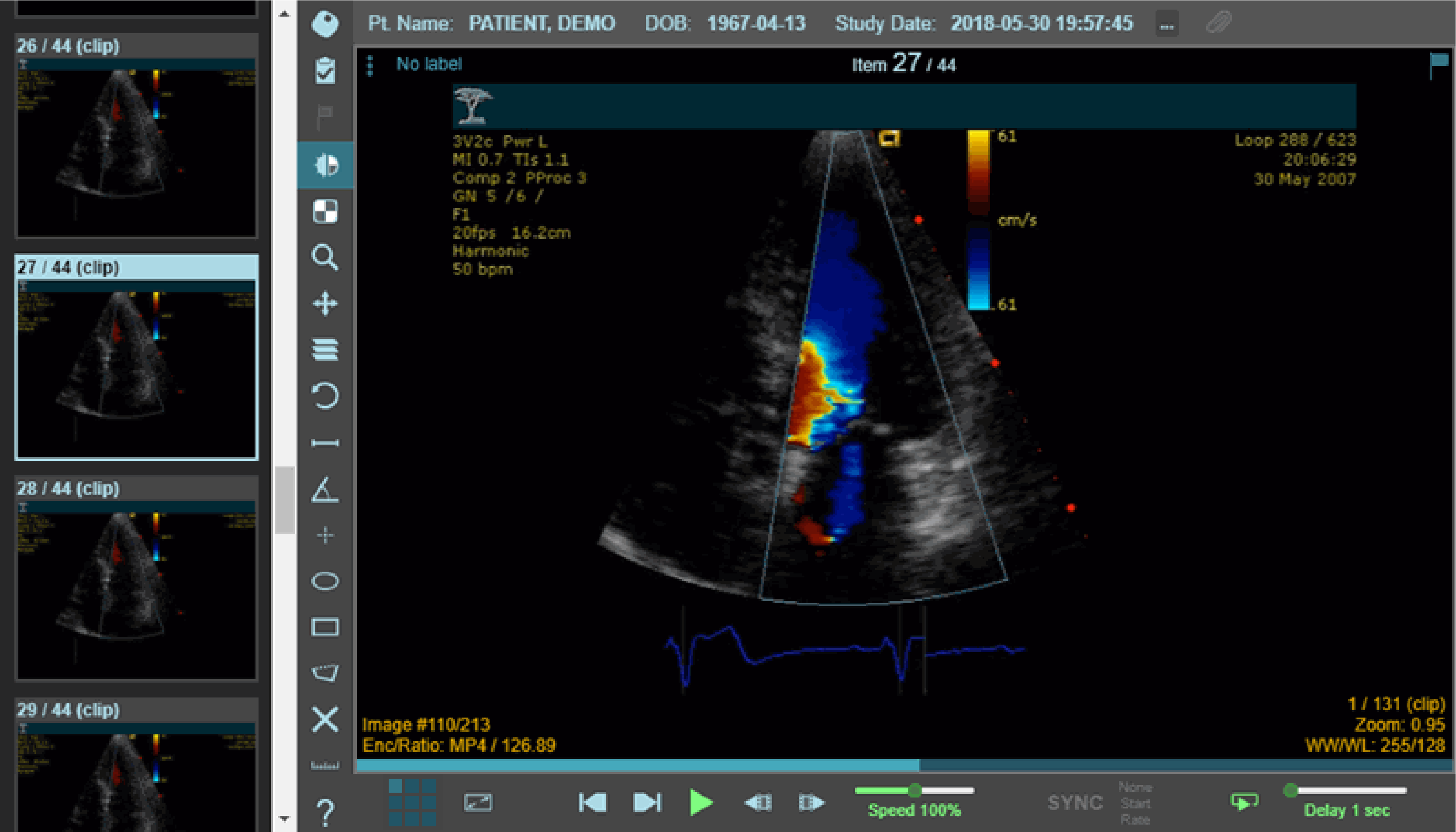

When you open the Study Viewer, the first image in the study is displayed. If the first image is a cine loop, it begins playing automatically. Thumbnails of available images appear in a scrolling list on the left side of the viewer. To view an image or loop, select it from this list. You can also navigate study images using the arrow keys on your keyboard and the play controls below the image.

Thumbnails of cine loops and image stacks have icons in their top right corner to differentiate them from single or static images.

Study Information

The patient's name, DOB, and study date appear at the top of the window. To see additional information, click the three dots to the right of the study date.
       If the study has attachments, the Attachments button will be active and will display the number of attachments. To open the attachments, click the button.
     If the patient has previous studies, the Other Studies button will be active. Click the button to see a list of previous studies available. Click on a study in the list to open it in a new tab.

DICOM Overlays

The viewer will display the following DICOM tags if they are present:
  1. Heart Rate (HR)
  2. Patient Name
  3. Patient DOB
  4. Sex
  5. Institution Name
  6. Study Date
  7. Study Time
If you would like to suppress these tags so they are not displayed on study images and loops, contact Studycast support.

Play Controls

Play controls are located at the bottom of the Study Viewer.

Previous Item (Up Arrow)
  1. Displays the previous image in the study. If you are viewing images 2-up or 4-up, the Previous Page button displays the previous 2 or 4 images.
Next Item (Down Arrow)
  1. Displays the next image in the study. If you are viewing images 2-up or 4-up, the Next Page button displays the next 2 or 4 images.
Play All (None)
  1. Plays all images in the study in order with the selected delay between the images.
Delay slider (None)
  1. Sets the amount of time each image is displayed in Play All mode.
Play (Space Bar)
  1. Plays the cine loop.
Pause (Space Bar)
  1. Pauses the cine loop.
Previous Frame (Left Arrow)
  1. Steps back one frame at a time in the cine loop.
Next Frame (Right Arrow)
  1. Steps forward one frame at a time in the cine loop.
Speed Slider (None)
  1. Controls the speed at which cine loops play.

Fullscreen Viewing

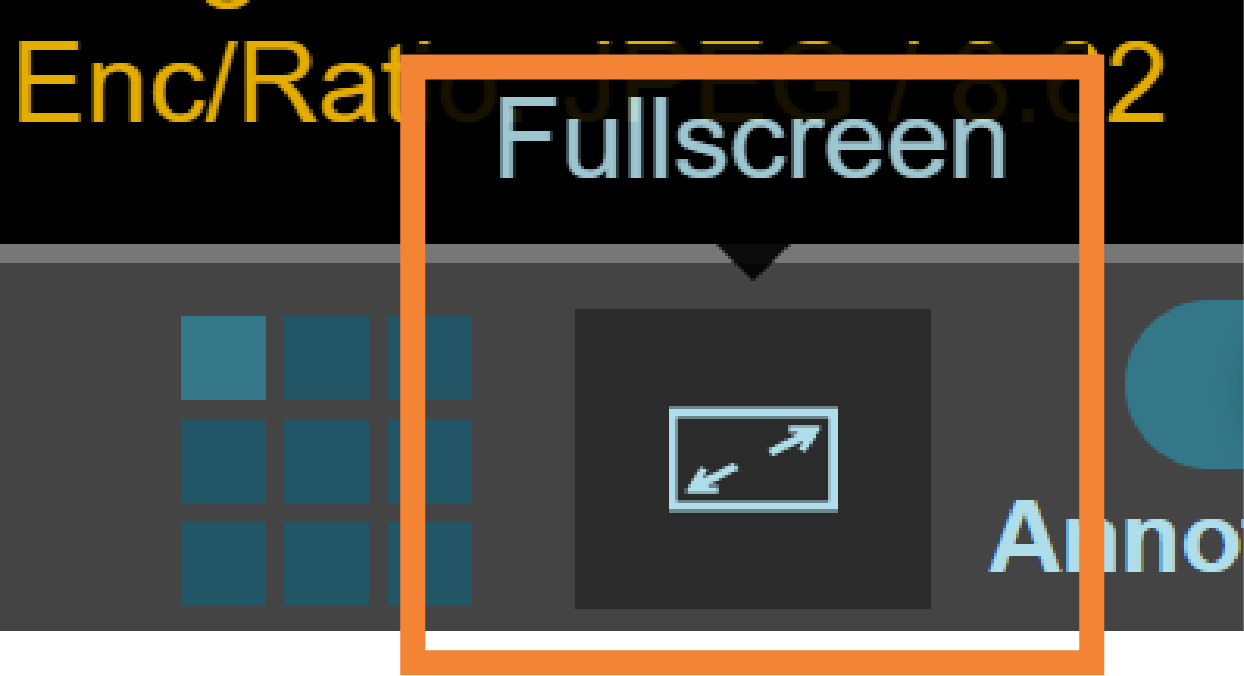

Use the Fullscreen button to the left of the play controls to toggle between full-screen mode and back. You can also exit fullscreen mode by pressing the ESC key on your keyboard.

View Multiple Images

When the Study Viewer opens, it displays a single image from the study. To view up to nine images simultaneously, use the control at the bottom left.
When viewing images in the viewing pane, you can choose any combination of images you'd like to see. Simply find an image in the list of thumbnails on the left. Then drag and drop the image into the viewing pane. When you open a new study, the viewer will default to the view you most recently used for the same study type.
To select the number and layout of simultaneous images in the viewer, move your cursor over the control. When the desired layout is highlighted in the control, click to select it.

View Reference Lines

For series that include reference line data, the reference lines will be displayed automatically in the inactive viewports when viewing multiple series simultaneously. Click a viewport to make it the active one. The reference lines in the inactive viewports automatically update as you scroll through the series in the active viewport.

To hide the reference lines, click the toggle at the bottom of the viewer. To once again show the reference lines, click the toggle again.

Speed and Sync

To control the speed of a cine loop, use the Speed slider control at the bottom of the Study Viewer.

When viewing two or four cine loops at a time, you can sync the loops using the SYNC menu at the bottom of the Study Viewer.

Sync Option - Description

  1. None - Cine loops play at their own rate and are not synced with each other.
  2. Start - All cine loops start at the same time and play at normal speed.
  3. Rate - All cine loops start at the same time and automatically adjust to end at the same time. Faster loops are slowed down to match the speed of slower loops.

Play All and Delay

To view all images in the list of thumbnails in sequence, click the Play All button in the bottom right. Use the Delay slider to set the amount of time the viewer displays each image. The delay value you select will be used for all studies and images until you choose a different value or close the browser.

View Controls

When you open a new study, the viewer will automatically select the control you used most recently for the same study type.

Button

Function


WW/WC

For ultrasound and other imaging modalities that do not produce images with a high bit-depth, this control functions as brightness and contrast. To change the brightness, click and drag the mouse up and down in the viewport. To change the contrast, click and drag the mouse right and left. To apply brightness and contrast to all viewports (all images in the study), hold Ctrl key while dragging the mouse.

For CT scans and other modalities that produce high bit-depth images, the window width and window center control the range of grayscale that can be displayed. With this tool, the user can specify the range of colors that are visible. Colors above this range appear as white. Colors below this range appear as black.

To adjust these settings, click and drag the mouse in the viewport.

•Right increases the window width

•Left decreases the window width

•Up increases the window center

•Down decreases the window center



For information on applying WW/WC presets, see WW/WC Presets for CT.


Invert

Inverts the colors in the image.


Zoom

Allows the user to zoom the item in the viewing pane in and out.  To zoom, hold the left mouse button down and move the cursor up or down.


Pan

Allows the user to drag the item in the viewing pane in any direction.


Stack Drag

To scroll through frames in a loop using the mouse:

1.Click the Stack Drag button

2.Place the cursor over the item in the viewing pane

3.Hold the left mouse button down and scroll up or down


3D Cursor

Allows the user to locate a single point in multiple views on different planes. When the 3D Cursor is placed on an image in the active viewport, the series in the inactive viewports automatically update to display the corresponding view with crosshairs marking the same anatomical location.


Reset View

Resets the item to the default view.

Measurement Tools

This menu to the left of the viewing pane provides tools for taking manual measurements on images and paused loops. For more information on how to use these tools, see Measure an Image.

Button

Function


Length

Allows the user to measure length along a straight line.


Angle

Allows the user to measure an angle.


Crosshairs

Allows the user to mark a spot on an image to take a velocity measurement using the point method.


Elliptical ROI

Allows the user to measure an elliptical area and circumference.


Rectangular ROI

Allows the user to measure a rectangular area.


Custom Polygon ROI

Allows the user to define and measure the area of a custom polygon.


Freehand ROI

Allows the user to define and measure the area of a drawn shape.


Delete Measurements

Deletes measurements from the item in the viewing pane.


Measurement Calibration

Allows the user to calibrate manually if an item does not have the necessary calibration information from the modality.


Calculations

Allows the user to take measurements that the software will use to calculate velocity, pressure gradient, pressure half time, velocity time integral, and ejection fraction on Doppler images.

Navigation

Button

Function

Studycast Icon

Click to return to the Studies page.

Worksheet Icon

Click to open the Worksheet. This icon changes color to indicate the study's status.

Report Icon

Click to view the Study Report.

Viewer Settings: Clearing/Disabling the Image Cache

The image cache can be manually cleared or disabled from Viewer Settings.
 Click the gears button in the upper right to access Viewer Settings.
The Viewer Settings window opens.
To disable image caching, click to toggle the Image cache option to the off position. To clear the image cache, click Clear.
Viewer Settings Window
